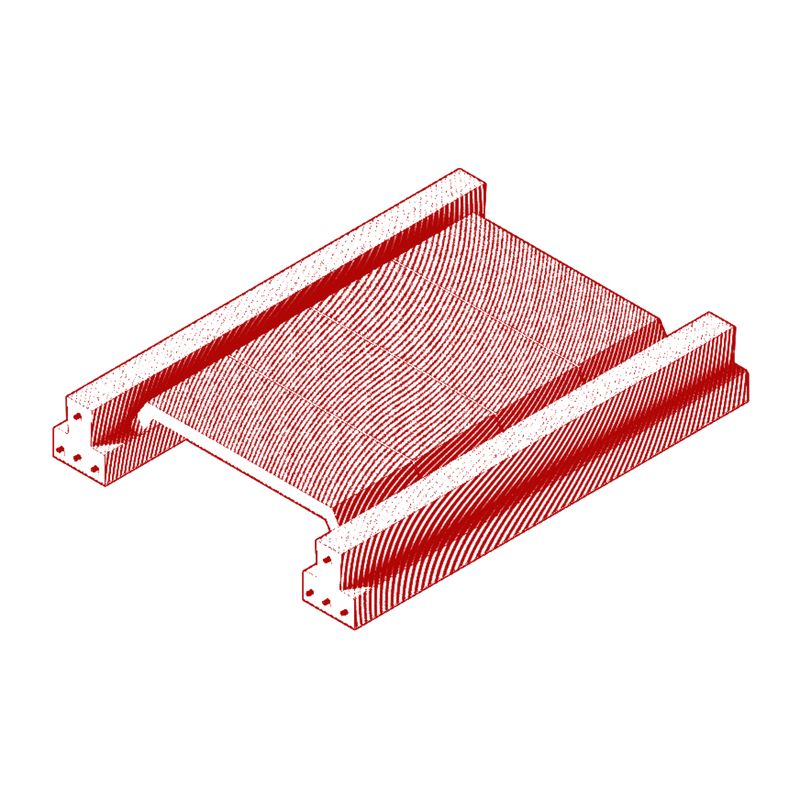

FLOOR SLAB SYSTEM

PRECAST

PRESTRESSED

5,500 psi

SEND US YOUR FLOOR PLAN

FREE STRUCTURAL DESIGN!

SINCE 1990

Designed to be a FAST, CLEAN and COST-EFFECTIVE floor

slab system alternative to the usual conventional method for

ALL BUILDING TYPES.


Its pre-tensioned tendons allow longer span support for ANY structure.

Upper Left Short Right Triangle Block

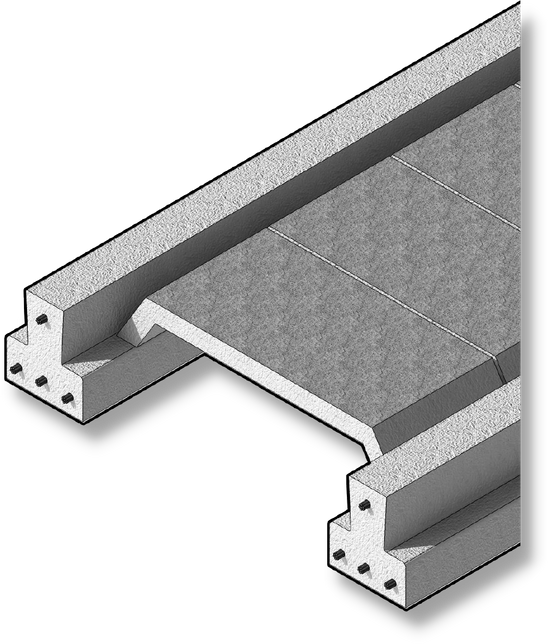

Minimum of 50 mm concrete slab

Upper Left Short Right Triangle Block
Upper Left Short Right Triangle Block
Upper Left Short Right Triangle Block

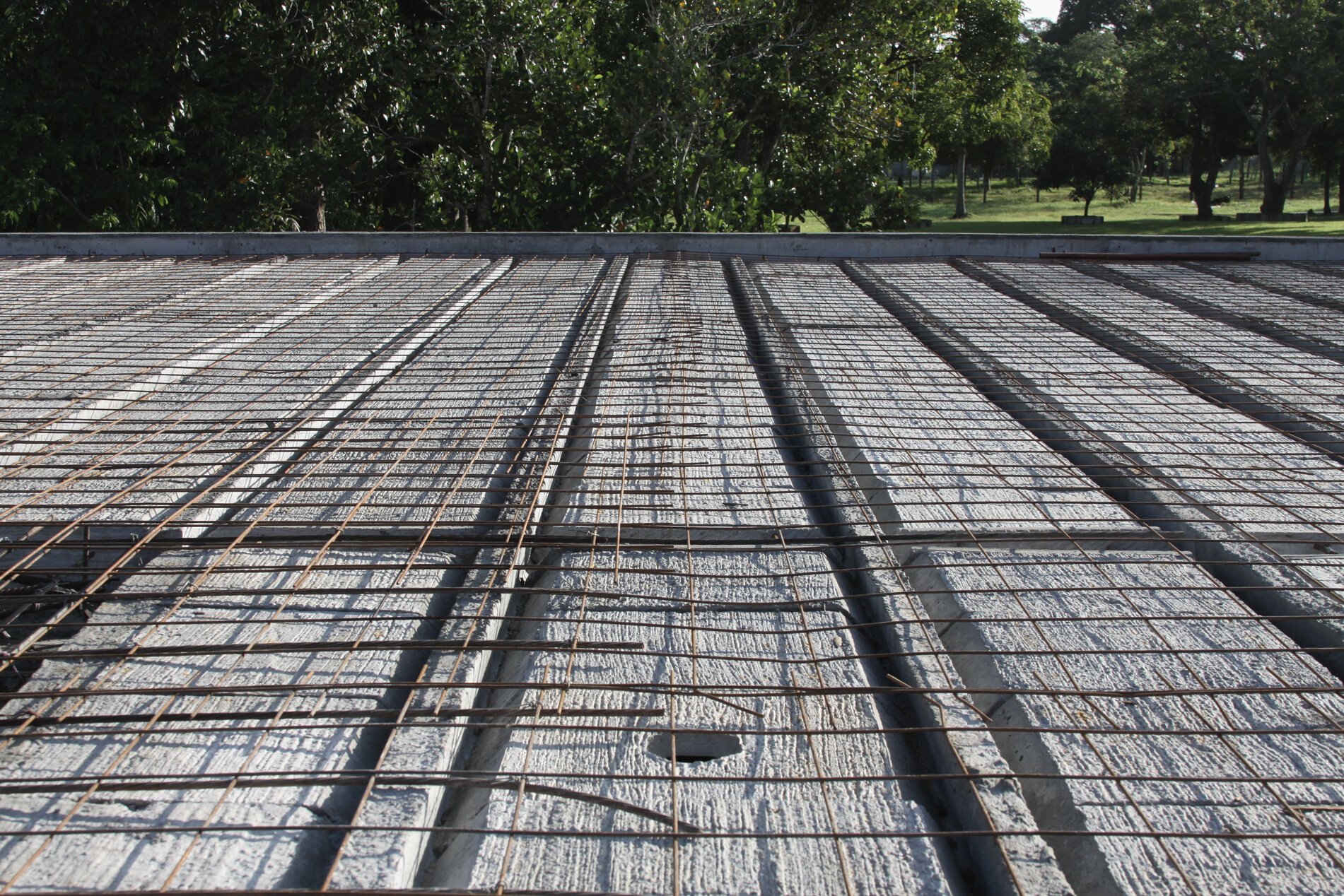

Concrete slab is reinforced with 6mm welded wire mesh at 150mm both ways

The modular nature of the C-JOIST system reduces the amount of time spent on installation, concrete slab pouring, and the dismantling of materials.

Greatly reduce or totally eliminate the need for formworks and scaffoldings giving workers a spacious and orderly workspace for efficient mobilization.

Save up to 20-25% on slab cost. In addition, the integration of the C-JOIST system during the design stage will result to lesser columns and beams due to longer spans.

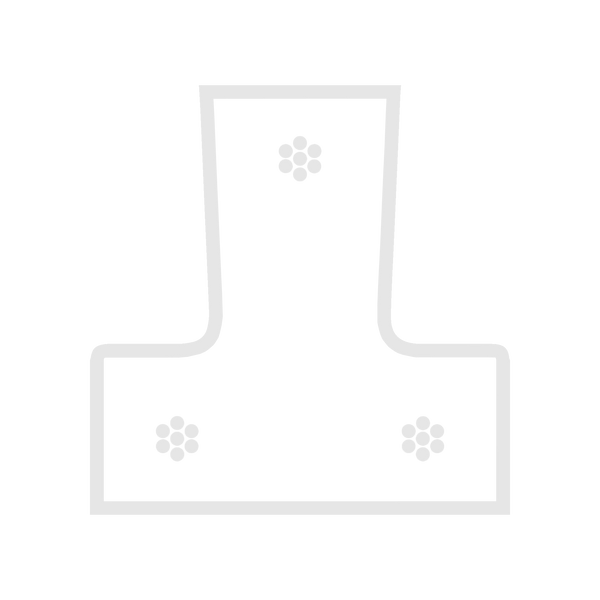

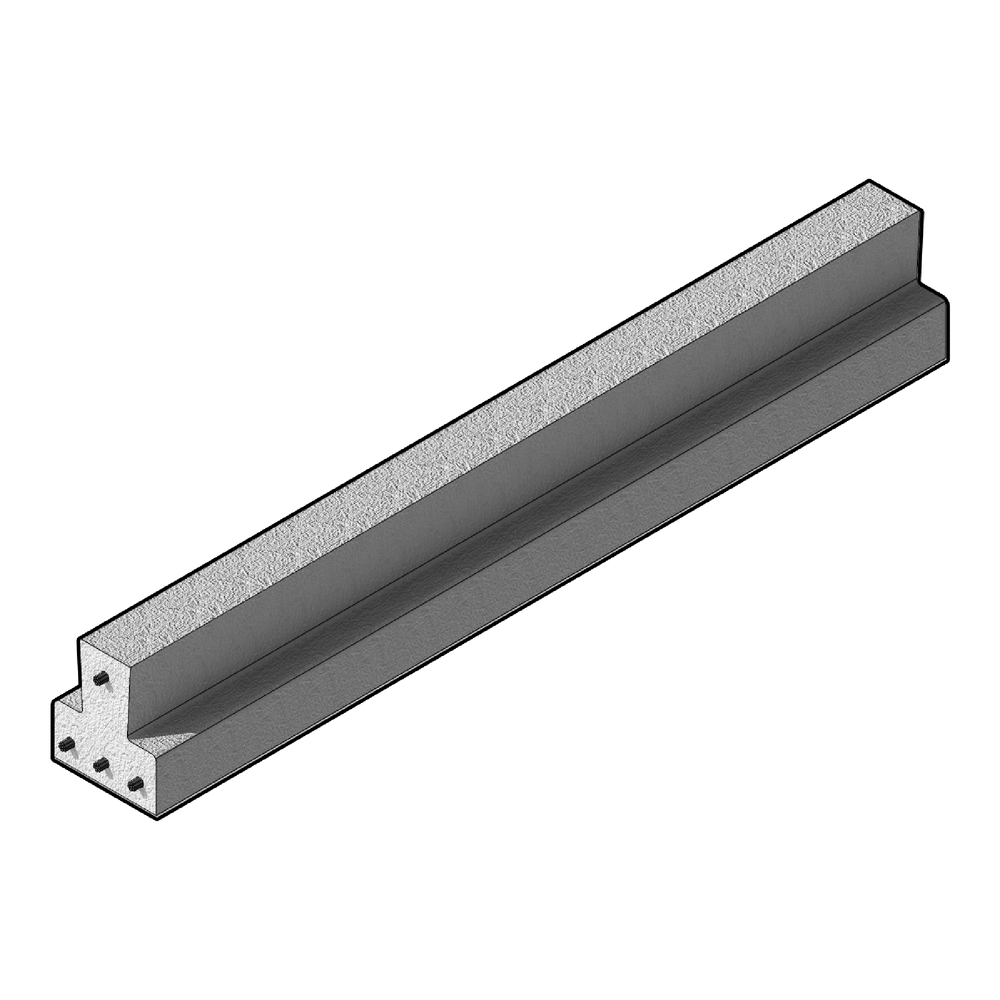

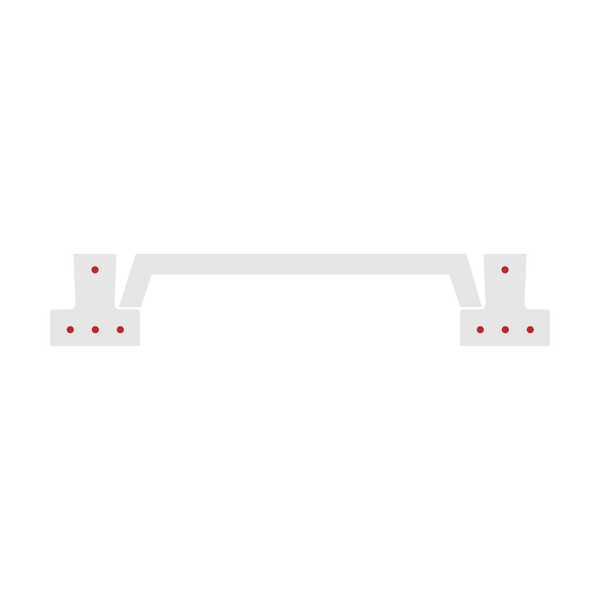

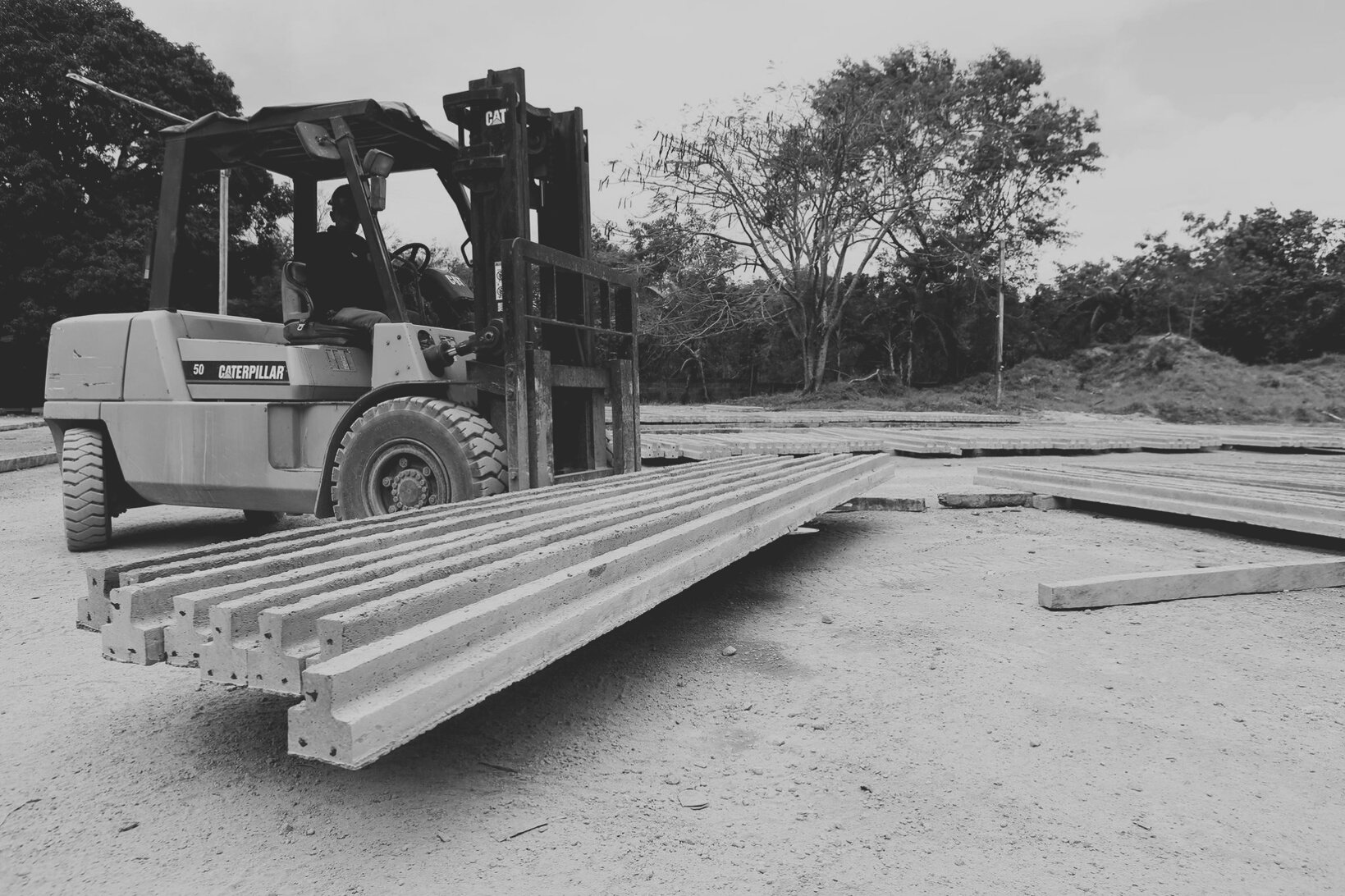

Concrete JOist equipped with pre-tensioned TEndons

7-Wire PC Steel Strand

TYPES

101

201

301

WIRES

2

4.0m

SPAN

RESIDENTIAL

LIGHT

COMMERCIAL

USES

WIRES

SPAN

USES

3

5.3m

PUBLIC/GOV'T

BUILDINGS

HEAVY

RESIDENTIAL

INSTIT-

UTIONAL

COMMERCIAL

WIRES

SPAN

USES

4

6.5m

HEAVY

COMMERCIAL

INDUSTRIAL

LOADING

ESSENTIAL

FACILITIES

Span may vary based on actual load requirements.

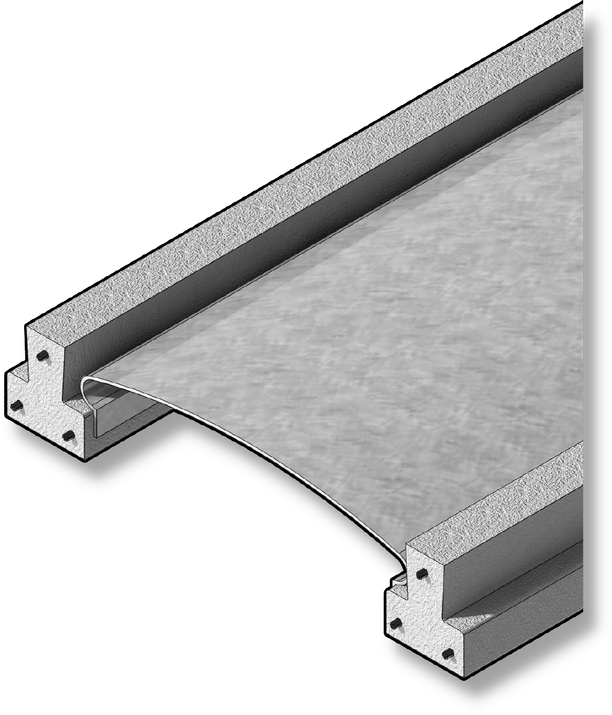

Removable Steel Form

SPACING

OPTIONS:

  • 620.00mm
  • 900.00mm

RSF

CONFIGURATIONS

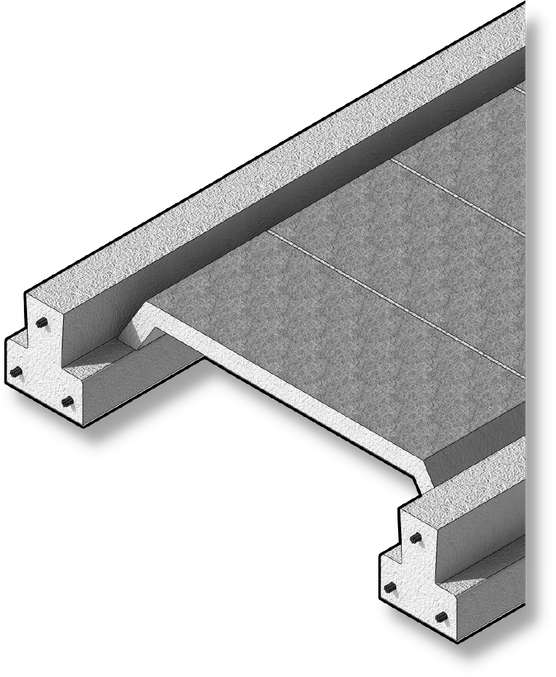

PCF

Permanent Concrete Form

870.00mm

870.00mm

SCF

Structural Concrete Form

620.00mm

620.00mm

CONCRETE VENTURES GROUP, INC.

OUR

SERVICES

Monoline Goal Planning Icon

PRE-CONSTRUCTION

Our representative can be contacted at the schematic stage for value engineering support to assure results, which will be the most cost-effective site-cast alternative for our customer’s project.

ConstructionCogwheels Icon

CONSTRUCTION

We provide support by using the most efficient construction techniques to build our customer’s project on time and within budget. It provides field labor for erection and removal of forms and supporting materials – a complete forming package customized for their project.

Concrete ventures group, Inc.

Concrete ventures group, Inc.

Concrete ventures group, Inc.

Concrete ventures group, Inc.

USed by industry-leading developers SUCH AS

FIND OUT MORE BY CLICKING THEIR LOGO

interested in c-joist for your next project?

Send us your floor framing plans!

For technical details, download our profile catalog.
